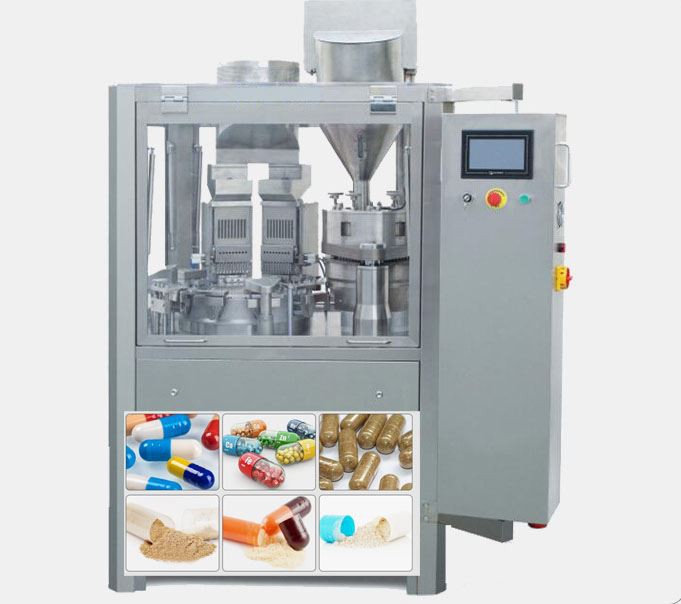

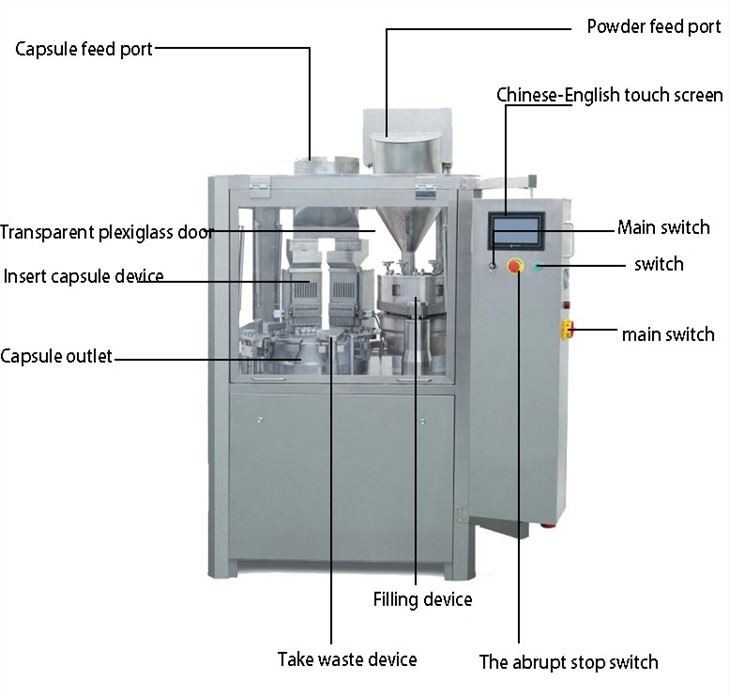

Featrues
我。It has been improved the inner design turret,and imports beeline bearings for each machine from Japan directly,so that it can be sure a longer usage-life and precision of machine.
II.The working station cam runs under the good lubricating condition,and maintains the inner lubrication of cam slot to a full extent,increasing the pressure pulverization oil pump,thus extends the operation life of the spare parts.
III.It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
IV.The multi-bore dosing brings a precision dosage (it is controlled around ±3.5%); the good capsule applicability makes a higher capsule qualified rate (99%).It can be filled with the Chinese traditional medicine and the Western medicine.
V.Add the extra function of capsule control switch.(Control the capsule outside of the machine,it is more safely and quickly.
Main Technical Data
Model |
NJP-200C |
NJP-400C |
NJP-800C |
NJP-1200C |
NJP-2000C |
NJP-3800C |
||
Capacity (Capsules/min) |
200 |
400 |
800 |
1200 |
2000 |
3800 |
||
Capsule Size |
Capsule Size 00”-5” And Safety Capsule A-E |
|||||||
Filling Precision |
Empty capsule 99.9% Fully capsule over 99.5% |
|||||||
No.of Segment Bores(pcs) |
2 |
3 |
6 |
9 |
18 |
27 |
||
Designing Precision |
Better than CP regulation |
|||||||
Voltage |
220V / 380V, 50Hz, 3 phase |
|||||||
Power (Kw) |
3 |
3 |
6 |
9 |
9 |
12 |
||
Noise db (A) |
≤75dB(A) |
|||||||
Filling type |
Powder,Pallet,Tablet |
|||||||
Compressed Air |
75m3/h0.4 |
|||||||
Vacuum (MPa) |
(-0.04)~-0.085 |
|||||||
Filling error |
±3%-±4% |
|||||||
整体尺寸(毫米) |
750*680*1700 |
750*680*1700 |
1020*860*1970 |
1020*860*1970 |
1200*1050*2100 |
1850*1470*2080 |
||
Net Weight (Kg) |
700 |
700 |
900 |
900 |
1300 |
2400 |
||
