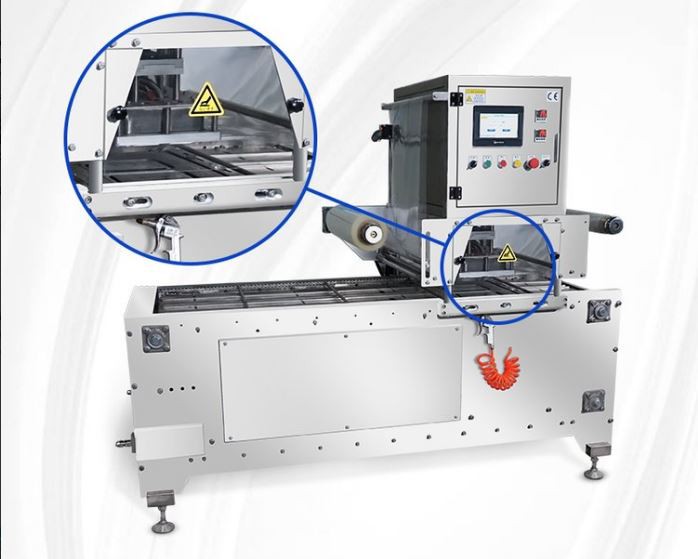

Auto Plastic Box Sealing Machine

产品Introduction：

(1) Basic technology: automatic cup dropping, automatic piston filling, automatic photoelectric film adjustment, automatic coding, automatic hot-press sealing (automatic sealing twice), automatic film cutting, automatic waste film collection, automatic cup out.

(2) Frame part: The frame is made of channel steel, and the outsourcing is welded by 304 stainless steel. Four-hole single-row aluminum alloy acid-resistant aluminum mold. (New models can be designed according to user needs).

(3) Transmission system: It is composed of motor, reducer, cam divider, template, etc. Intermittent transmission device, SMC pneumatic control element, intelligent digital display temperature control system. The precision cam divider operates in step-by-step clearance, and a high-performance reducer; smooth transmission, small impact, and accurate positioning.

(4) Filling system: The storage tank is made of stainless steel 304, the cylinder moves linearly and vertically, and the piston pump is used for quantitative filling and non-contact filling. The filling volume can be adjusted freely and the quantification is accurate.

(5) Coding system: automatic ribbon coding (constant temperature control) is adjustable, and characters can be changed quickly. Easy to load and unload.

(6) Film correction system: Photoelectric eye tracking automatically corrects the film pattern to be aligned with the cup mouth.

(7) Sealing system: adopts constant temperature (intelligent temperature control) heat pressure sealing, and the sealing pressure is adjustable.

(8) Film cutting mechanism: cold punching

Main Features of Auto Plastic Box Sealing Machine：

1.auto feed , open the box , fill the box , sealingbox and select box once time ;

2.Touch screen ,PLC control , high technology,operate easy ;

3. Photo electricity trace system check the ,removethe empty box , save the packing material ;

4.对不同包装ing size , adjustable easy ,noneed change the mode ;

5.Auto protect system, once the goods not entrybox fully ,or overloading ;

6.With the glass cover ,safety and beautiful ;

7.This machine can join with packing machine , 3Dpacking , filling machine , labeling machine ,codemachine work together ,become the completelyline ;

Touch screen control, Omron temperature controller

Famous brand PLC controller and electric parts

sealing part

Parameter:

产品Application：
